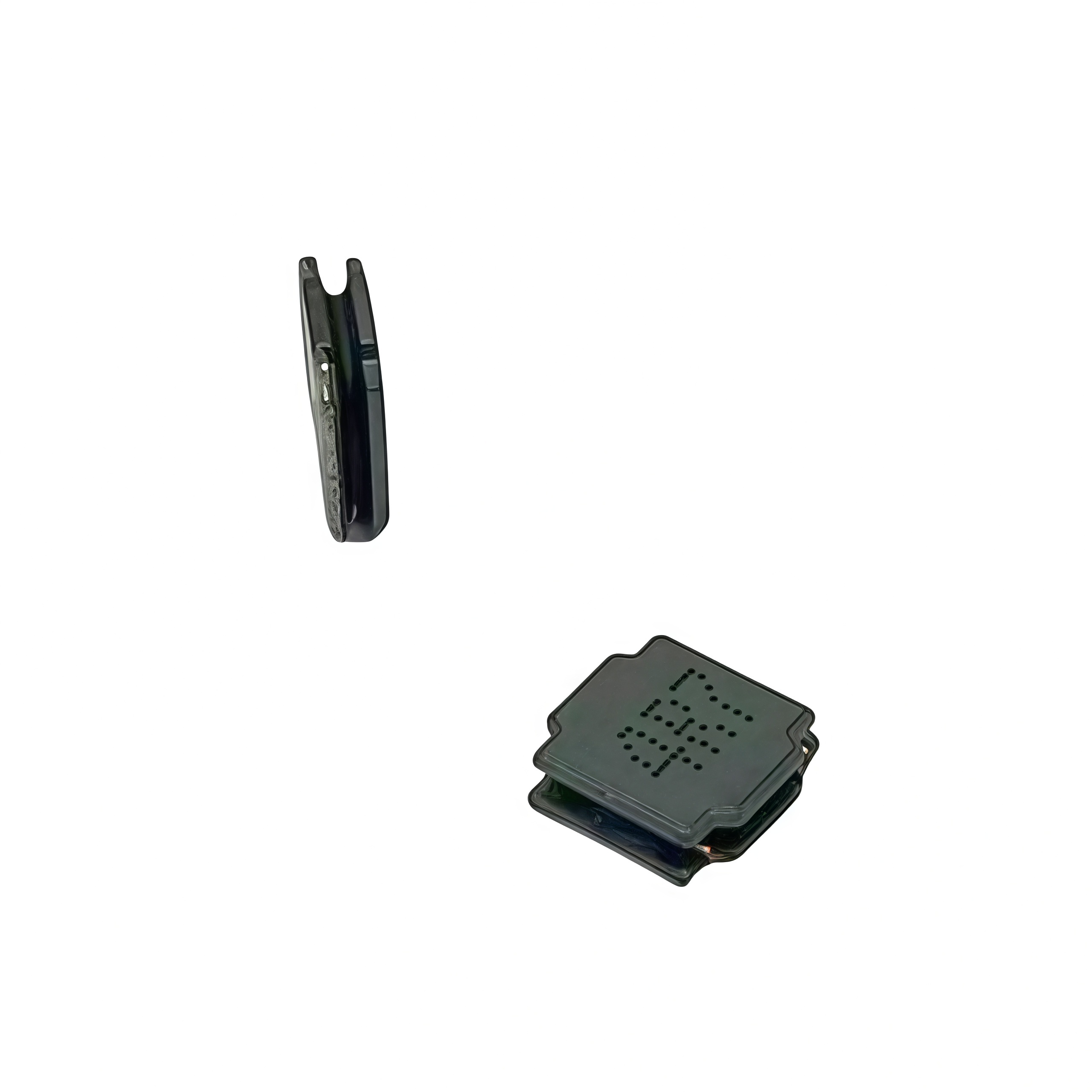

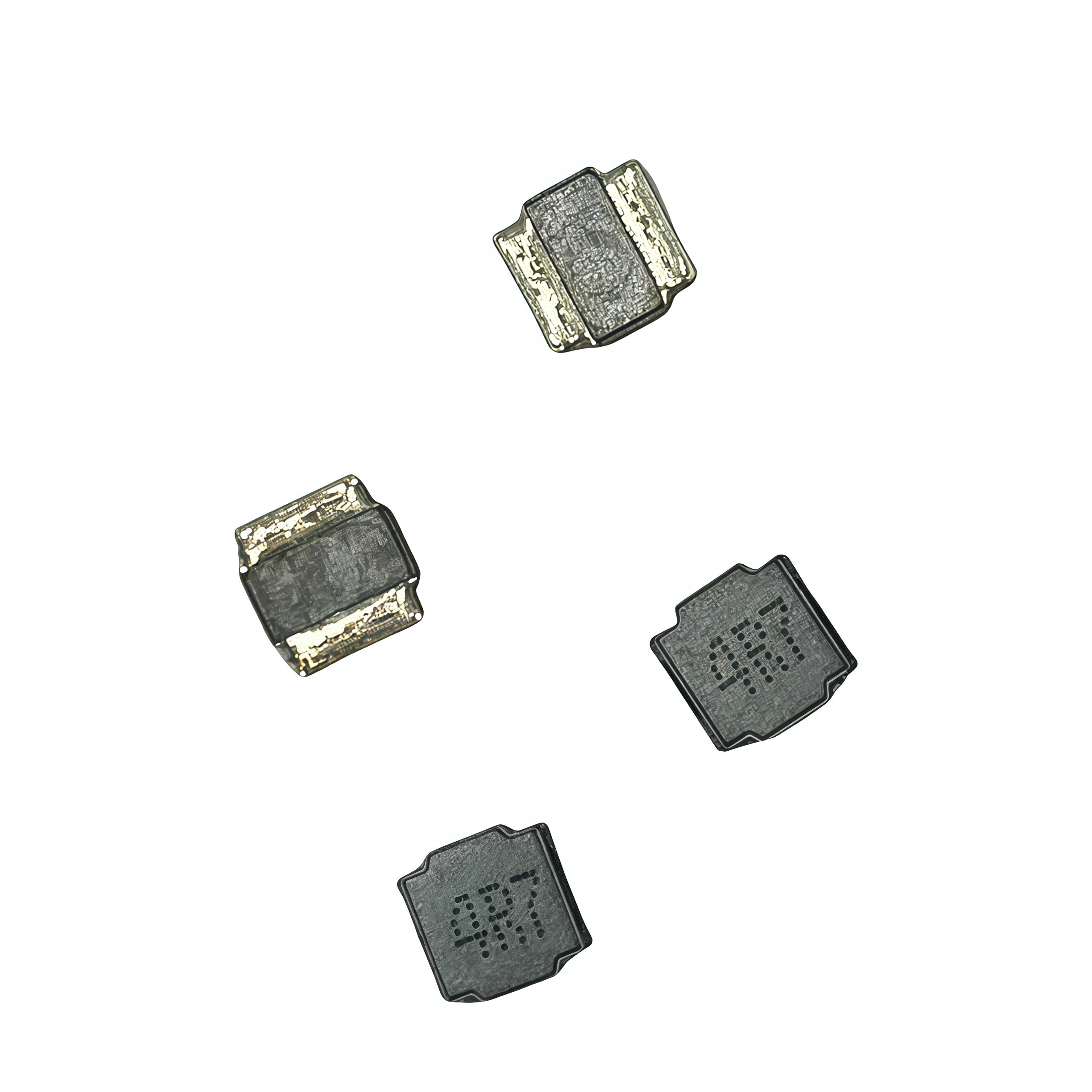

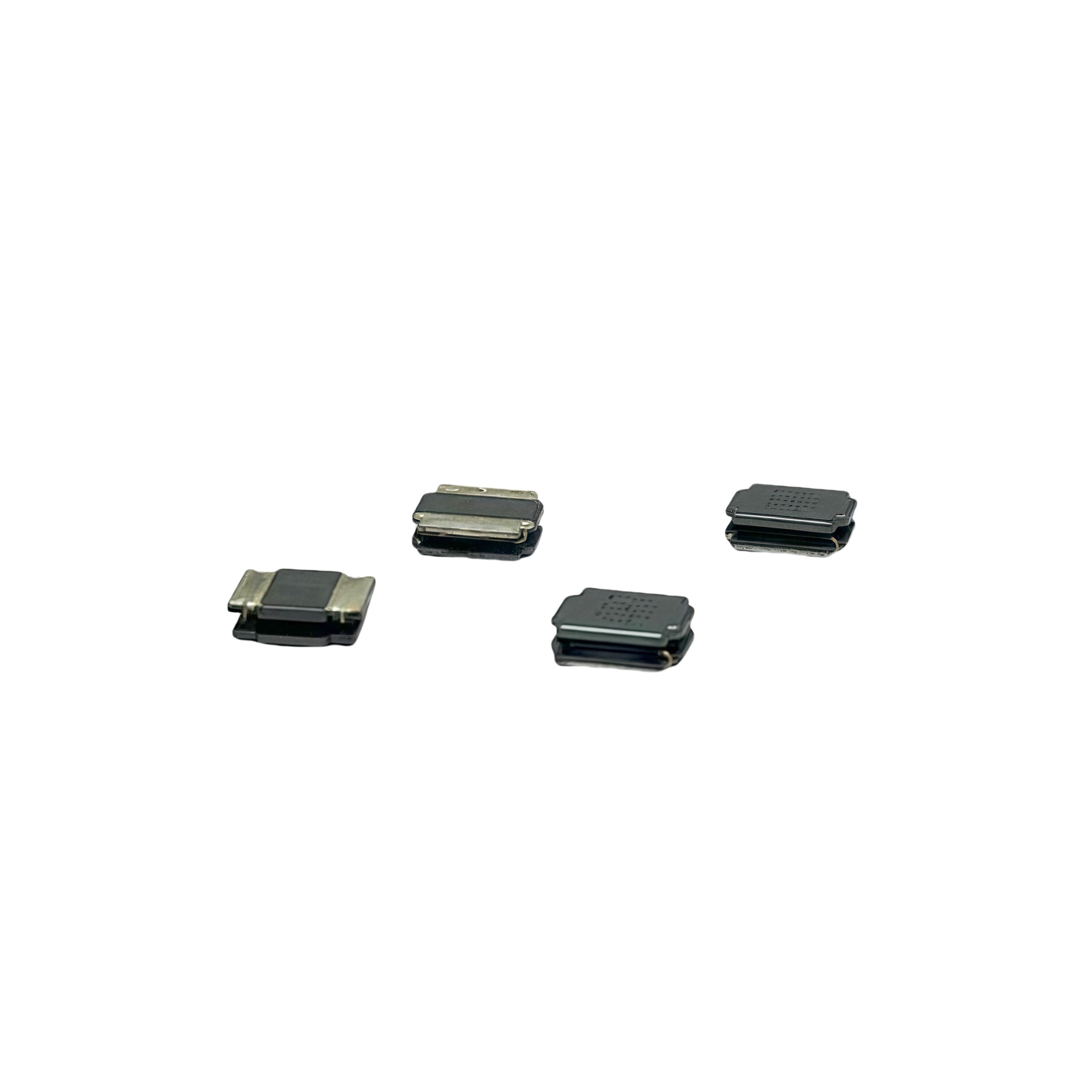

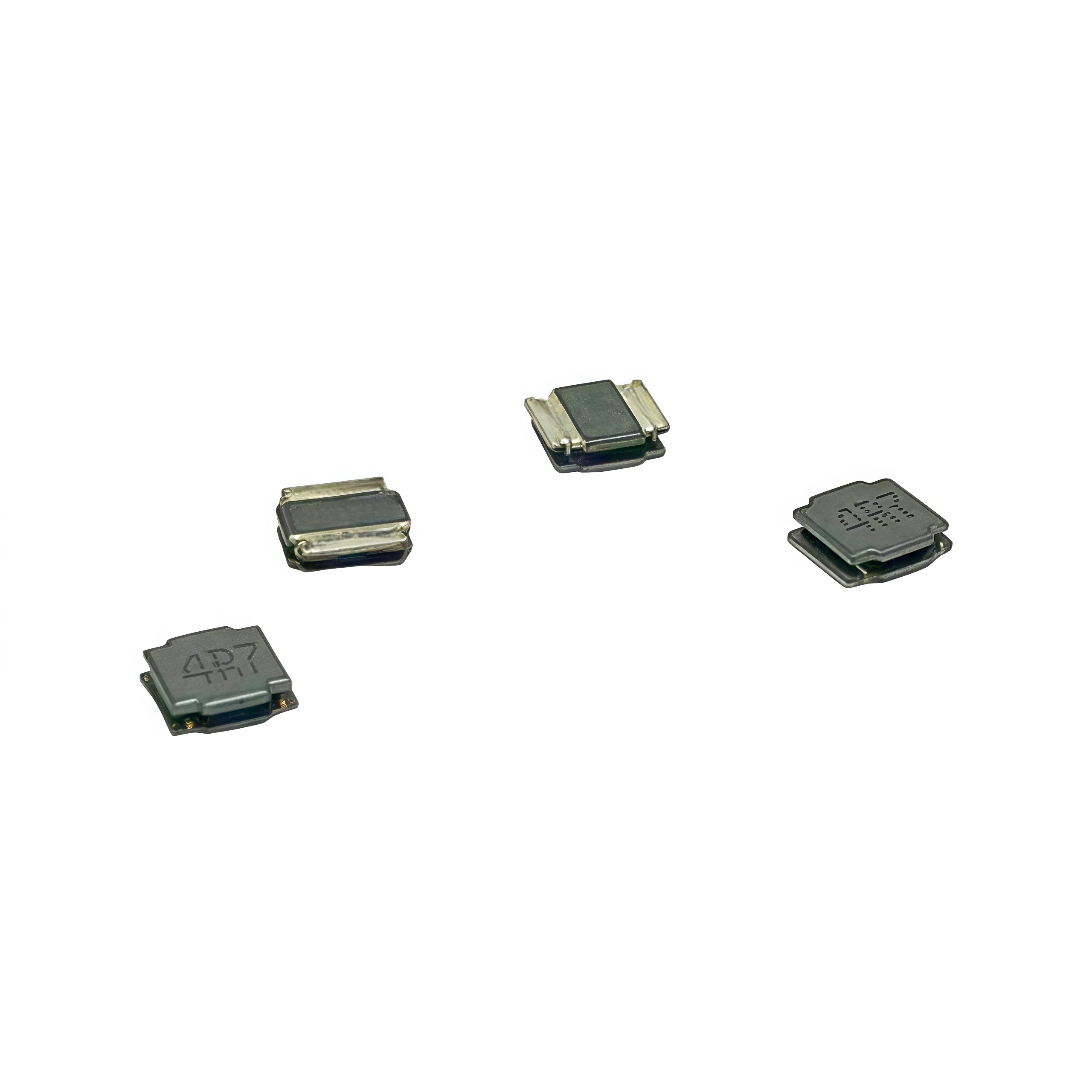

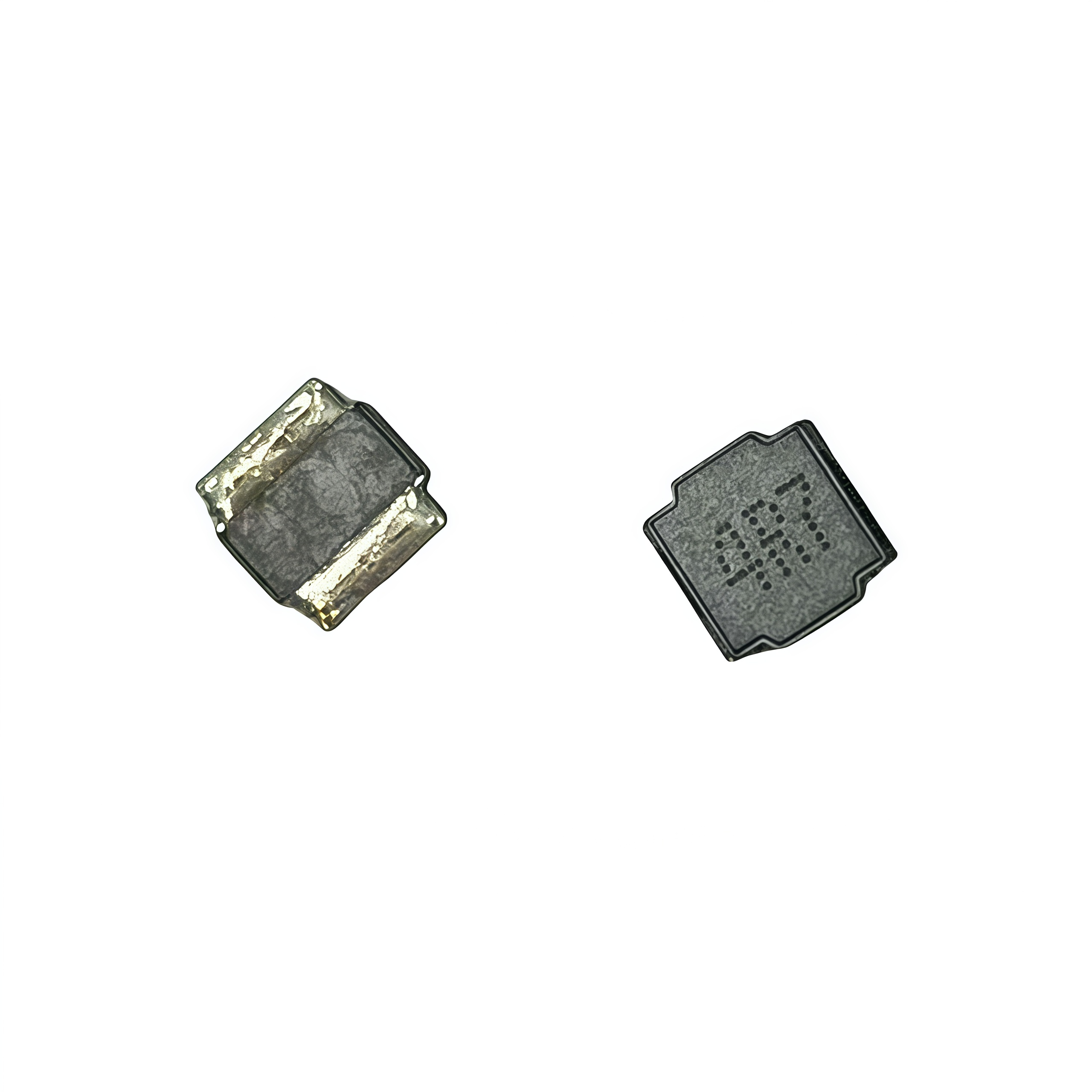

4.7UH Large Current Shielded Surface Mount High Power Inductor Magnetic Multilayer

Brand Name : ZXY

Model Number : ZXY-4R7

Certification : RoHS、ISO9001、CE

Place of Origin : China,Shenzhen City.

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Delivery Time : Stock Or 3 weeks

Packaging Details : Carton

Other name : 4.7UH Magnetic Shielded Multilayer Inductor

Structure : Inductive Choke

Structure of Magnetizer : Iron Core Coil

Quality Control : 100% Tested

Feature : Lower Inductance Loss

Resistance : Low Resistance

Contact Now

4.7UH Large Current Shielded Surface Mount High Power Inductor Magnetic Multilayer

1.Product Description

The 4.7μH Magnetic Shielded Multilayer Inductor is a sophisticated electronic component designed to meet the demands of modern - day electronics. With an inductance value of 4.7μH, it is well - tuned for applications that require precise energy storage and transfer. Its magnetic shielding, crafted from high - quality magnetic materials, serves a dual purpose. It effectively curbs the electromagnetic interference (EMI) emitted by the inductor, preventing it from disrupting nearby sensitive components in a circuit. Simultaneously, it shields the inductor from external EMI sources, ensuring stable performance even in electrically noisy environments. The multilayer construction of this inductor offers several advantages. It increases the inductance density, allowing for a more compact form factor while maintaining high performance. This makes it an ideal choice for space - constrained applications, such as in smartphones, wearable devices, and compact circuit boards. In power - management circuits, the 4.7μH Magnetic Shielded Multilayer Inductor plays a crucial role in filtering out high - frequency noise and stabilizing the power supply. It stores electrical energy during periods of low demand and releases it when the load requires a sudden surge of power. This helps in maintaining a consistent voltage level, protecting delicate electronic components from voltage fluctuations. Additionally, in signal - processing applications, it can be used to isolate and filter signals, enhancing the quality and integrity of the transmitted data. Overall, this inductor combines high - performance capabilities with a compact design, making it an essential component in a wide range of electronic devices.

2.Product Advantages

Advantage	Description
Precise Inductance Value	The 4.7uH inductance value is highly precise, which is crucial for applications demanding accurate energy storage and transfer. In circuits where specific electrical characteristics need to be maintained, such as in high - precision measurement devices or certain types of communication modules, this accurate inductance value enables stable operation. For example, in a radio - frequency (RF) circuit, the 4.7uH value can help in tuning the circuit to the exact frequency required for signal transmission and reception, ensuring optimal performance.
Effective Magnetic Shielding	Constructed from high - quality magnetic materials, the magnetic shielding has a two - fold benefit. Firstly, it significantly reduces the electromagnetic interference (EMI) generated by the inductor itself. In a densely - populated circuit board with multiple components, this shielding prevents the inductor from interfering with other sensitive components like microcontrollers or analog - to - digital converters. Secondly, it shields the inductor from external EMI sources. In an industrial environment filled with strong electromagnetic fields from motors and other machinery, the shielded inductor can maintain its performance without being affected, ensuring the reliability of the circuits it is part of.
Multilayer Structure Benefits	The multilayer construction increases inductance density. This allows for a more compact form factor while still maintaining high performance. In space - constrained applications such as smartphones, wearable devices, and miniaturized electronics, the compact size of the 4.7uH Magnetic Shielded Multilayer Inductor is highly advantageous. It enables manufacturers to fit more components on a limited - size circuit board, contributing to the overall miniaturization and portability of the device. Additionally, the multilayer structure can enhance the inductor's ability to handle higher currents, as the multiple layers distribute the current more evenly, reducing the risk of overheating and improving the inductor's lifespan.
Versatile Application Suitability	In power - management circuits, the inductor plays a vital role in filtering high - frequency noise and stabilizing the power supply. It stores energy during low - demand periods and releases it during peak - load times, maintaining a consistent voltage level and protecting sensitive electronic components from voltage fluctuations. This is particularly important in battery - powered devices, where stable power is essential for long - term operation. In signal - processing applications, the inductor can isolate and filter signals, enhancing the quality and integrity of transmitted data. Whether in a wired communication system or a wireless network, the inductor helps to ensure clear and reliable signal transmission, making it suitable for a wide range of electronic devices and systems.

4.7UH Large Current Shielded Surface Mount High Power Inductor Magnetic Multilayer
