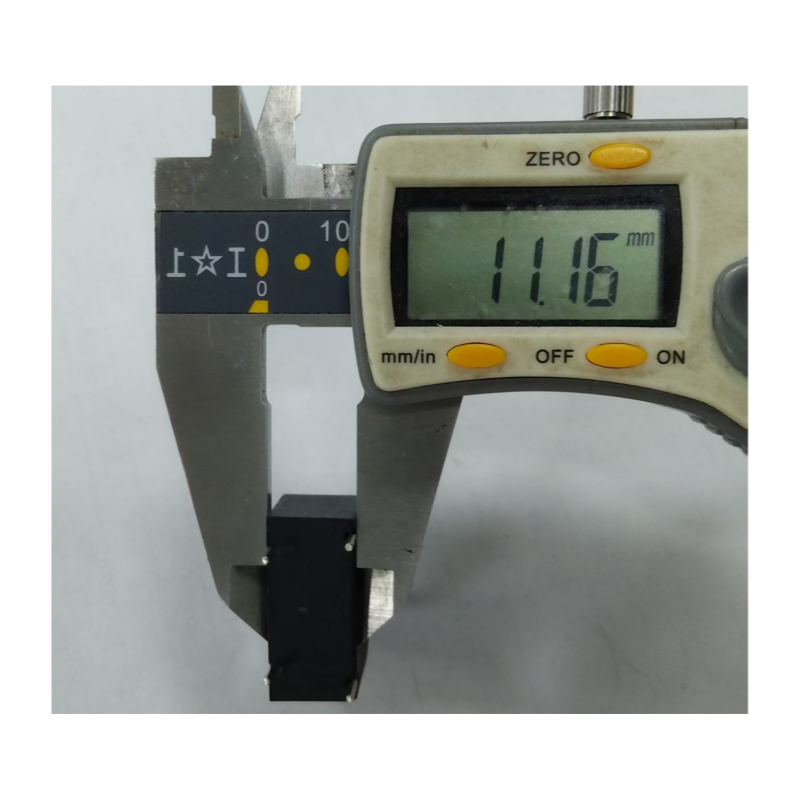

Compact Design PCB Mount Current Transformer with Electrical Isolation for Electrical Current Measurement and Monitoring Systems

Our current transformer (CT) is designed for accurate electrical current measurement, monitoring, and signal conversion in a wide range of electrical systems. It converts high primary current into a proportional secondary current signal, enabling safe and reliable monitoring by meters, measuring instruments, and electrical protection devices.

Suitable for power monitoring systems, industrial equipment, and energy management applications, this current transformer supports stable operation and integration into different electrical designs. Customized solutions are available to meet specific requirements for current ratio, dimensions, installation methods, and electrical performance.

• Reliable Current Measurement: Provides proportional current signals for electrical measurement and monitoring.
• Compact Design: Suitable for integration into various electrical devices and control systems.
• Stable Performance: Designed for consistent operation in demanding electrical applications.
• Electrical Isolation: Provides isolation between the primary circuit and the secondary measurement circuit when properly designed and installed.
• Flexible Customization: Current ratio, structural dimensions, mounting options, and other specifications can be customized according to project requirements.
• OEM & ODM Support: Supports customized development from sample evaluation to mass production.

Our current transformers can be used in a variety of electrical and industrial applications, including:

• Electrical current measurement and monitoring systems
• Power meters and energy monitoring equipment
• Industrial automation and control systems
• Power distribution and electrical panels
• Smart meters and energy management systems
• Electrical protection and monitoring devices
• Renewable energy and power conversion equipment

Different applications require different electrical and structural characteristics. We provide customized current transformer solutions based on your application requirements, technical drawings, or reference samples.

• Rated primary and secondary current
• Current transformation ratio
• Core material and structural design
• Product dimensions and mounting methods
• Accuracy class and rated burden
• Insulation requirements and operating conditions

Our engineering team can work with you to evaluate product requirements and develop a suitable solution for your application.

With 26 years of experience in magnetic components manufacturing, we specialize in developing and manufacturing transformers, inductors, current transformers, and other magnetic components.

As a direct manufacturer, we offer engineering support, customized production, sample evaluation, and reliable manufacturing services. Our quality control processes and testing equipment help ensure product consistency throughout production.

Whether you need a standard current transformer or a customized solution for a specific electrical system, we are ready to support your project from initial development to mass production.
